Stainless Steel Grill Grates Buyer's Guide

Grill grates take more abuse than almost any other component on your cooker , direct flame, grease, moisture, and the wire brush you drag across them every session. Replacing them with stainless steel is one of the few upgrades that actually delivers on its promise: better corrosion resistance, longer service life, and grill marks that don’t come with rust flakes. If you’re browsing Tools & Grates for the first time, the number of options for what looks like a simple part can feel disproportionate.

The complication is compatibility. Grill grates are not universal, and the wrong dimensions or bar spacing will leave you with a part that doesn’t seat correctly or gaps that drop food. Getting the right fit matters more than any other variable in this category.

What to Look For in Stainless Steel Grill Grates

Steel Grade

Not all stainless steel performs equally outdoors. The two grades you’ll encounter in grill grates are 430 and 304, and the difference is meaningful. Grade 430 is a ferritic stainless , it’s magnetic, less expensive to produce, and adequate in dry climates where the grill is covered and stored well. Grade 304 is austenitic, meaning it contains nickel in addition to chromium. That nickel content is what gives 304 its stronger resistance to chloride corrosion, the kind you get from coastal air, heavy seasoning, or a grill left uncovered in rain.

If you live anywhere with humidity, salt air, or hard winters, 304 is the grade worth seeking out. The quick field test: hold a magnet to the grate. 304 is non-magnetic or weakly magnetic. 430 will grab the magnet firmly. Most product listings will specify the grade , SUS304 is the ISO designation for the same alloy, used interchangeably.

Bar Diameter and Spacing

Thicker bars retain more heat, which is what produces a clean sear rather than a gray steam mark. A 9mm bar is meaningfully different from a 6mm bar in practice, not just on a spec sheet. The bar diameter also affects durability , thinner bars warp faster under repeated high-heat cycles.

Spacing matters for two reasons. Too wide, and smaller proteins , fish fillets, shrimp, smaller vegetables , fall through. Too narrow, and you lose the airflow that keeps flare-ups manageable. For most general grilling, bar spacing in the 10, 13mm range works across protein types. If you cook fish regularly, aim for the narrower end of that window.

Model Compatibility

This is the variable that eliminates most options before you evaluate anything else. Grill grates are sized to specific cooking chambers, and fractions of an inch matter. A grate that’s a quarter-inch too wide won’t drop into the frame. One that’s a quarter-inch too short will shift and create an uneven cooking surface.

Start with your grill’s model number , it’s usually on a plate inside the lid or on the back panel. Cross-reference that against the compatibility list in the product description before anything else. The full range of grilling hardware and replacement parts worth considering is covered across the grill tools and grates category, which can help you see options you might not have found searching by model number alone.

Aftermarket vs. OEM

Original equipment grates from Weber or Charbroil carry brand warranty coverage and are dimensioned to factory spec. Aftermarket grates are typically less expensive and often use a higher steel grade than the original , some Weber grills shipped with 430 grates, and aftermarket 304 replacements represent a genuine upgrade. The trade-off is fit tolerance. OEM parts are machined to exact spec; aftermarket parts are manufactured to published dimensions that are close but occasionally require minor adjustment. For most replacements, aftermarket 304 grates are the better value proposition. For a grill still under warranty, check whether aftermarket parts affect coverage before you order.

Top Picks

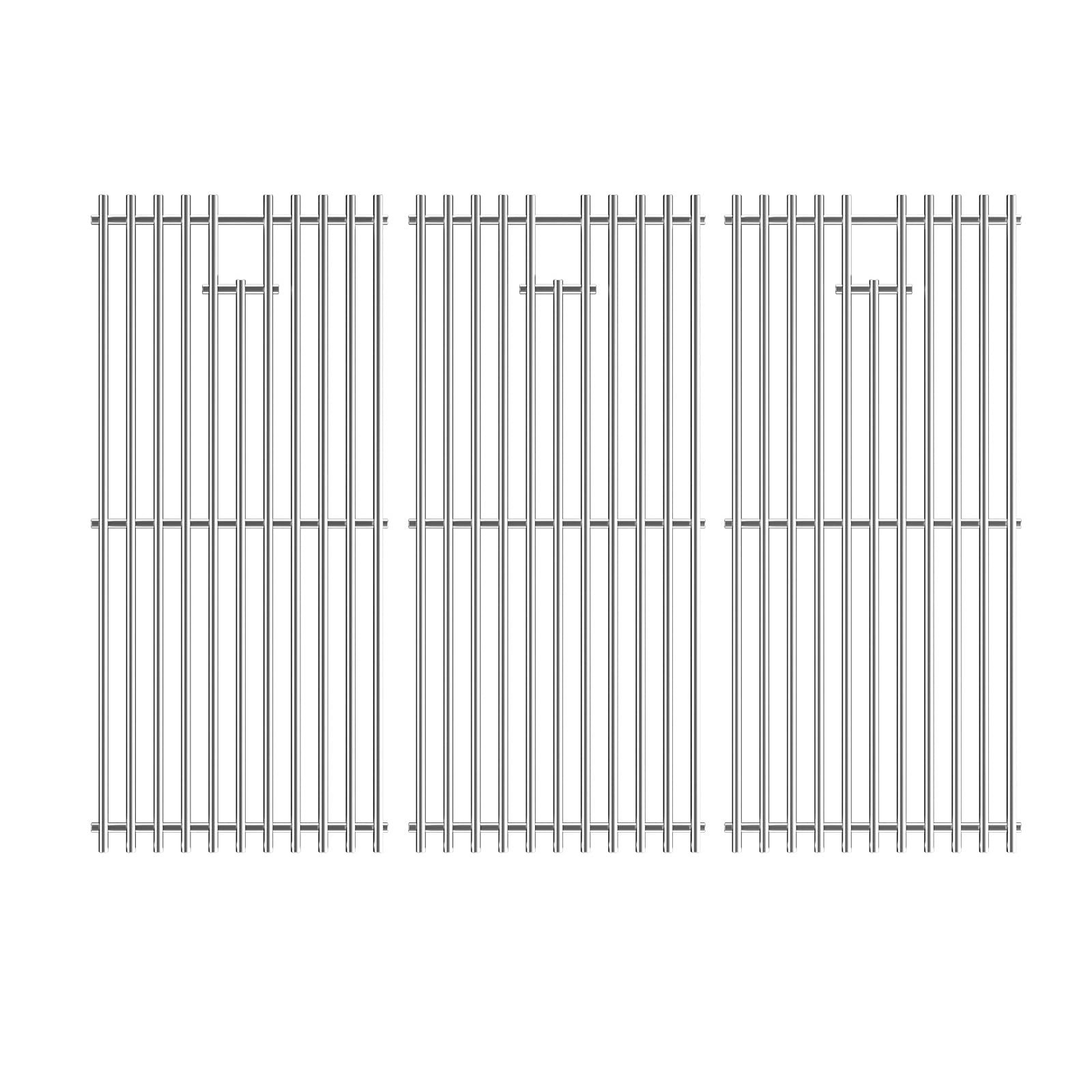

Stainless Steel Cooking Grates for Charbroil Commercial Infrared 463355220 463242516 463242515 466242615 463243016, for 463346017 466242616 463367016 463246018, G466-0025-W1A Replacement Parts

The Stainless Steel Cooking Grates for Charbroil Commercial Infrared fill a specific need: if you own one of the Charbroil commercial infrared models in the compatibility list, finding a replacement grate that actually fits can be harder than it should be. These address that directly. Charbroil’s infrared burner design uses a radiant emitter plate between the burner and the grate, which means grate geometry has to clear that plate consistently , a generic grate that’s off by a few millimeters causes problems that go beyond aesthetics.

The stainless construction holds up to the higher surface temperatures that infrared burners produce. Infrared cooking runs hotter at the grate level than conventional convection grilling, which accelerates corrosion on lower-grade steel. Stainless resists that well. These are a straightforward replacement part , no additional features, no upgrades , and that’s the right framing. If your model is in the compatibility list, they solve the problem cleanly.

Check current price on Amazon.

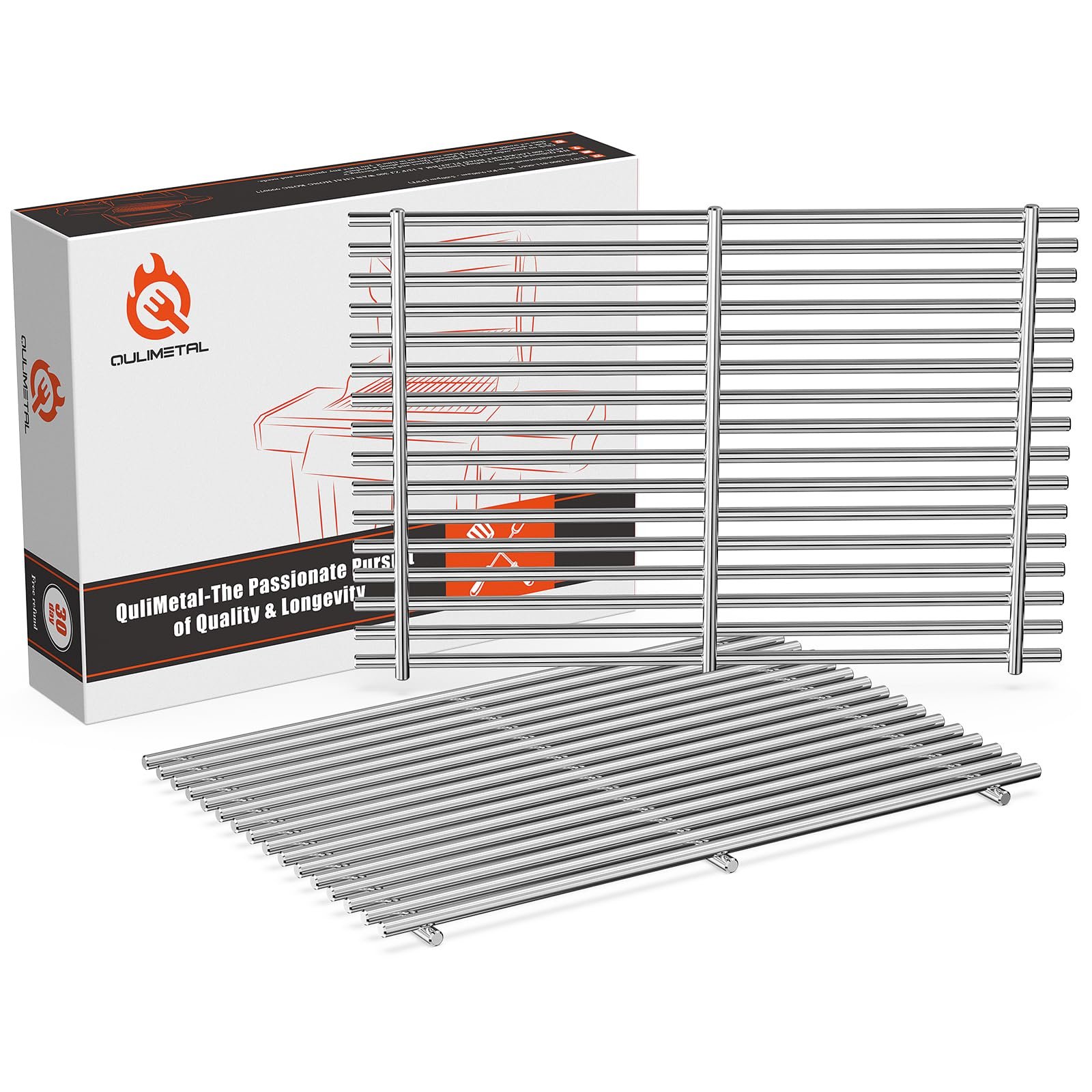

QuliMetal SUS304 Grill Grates for Weber Spirit E-310 and GS4 Spirit II 300 Series, Spirit 700, Genesis Silver B & C, Genesis Gold B & C, Genesis Platinum B & C, Genesis 1000-3500

For Weber Spirit and older Genesis owners, the QuliMetal SUS304 Grill Grates are worth attention specifically because of the SUS304 designation. Some earlier Weber Spirit models shipped with 430 stainless grates , serviceable, but not the most corrosion-resistant option available. Replacing them with 304 is a functional upgrade, not just a like-for-like swap.

QuliMetal’s compatibility list covers a broad range of Spirit and Genesis configurations, which reduces the likelihood of ordering the wrong part if you’re working from memory rather than a model number. The fit is close to OEM on most configurations, though occasional minor seating adjustments have been reported on older Genesis frames , this isn’t unusual for aftermarket parts in this category and doesn’t affect cooking performance once the grates are seated.

The heat distribution difference between aftermarket stainless and the original porcelain-coated grates some Spirit models used is real. Bare stainless requires more attention to prevent sticking, particularly for fish and chicken skin. Preheat time and oiling the grate before proteins go on matter more here than with porcelain.

Check current price on Amazon.

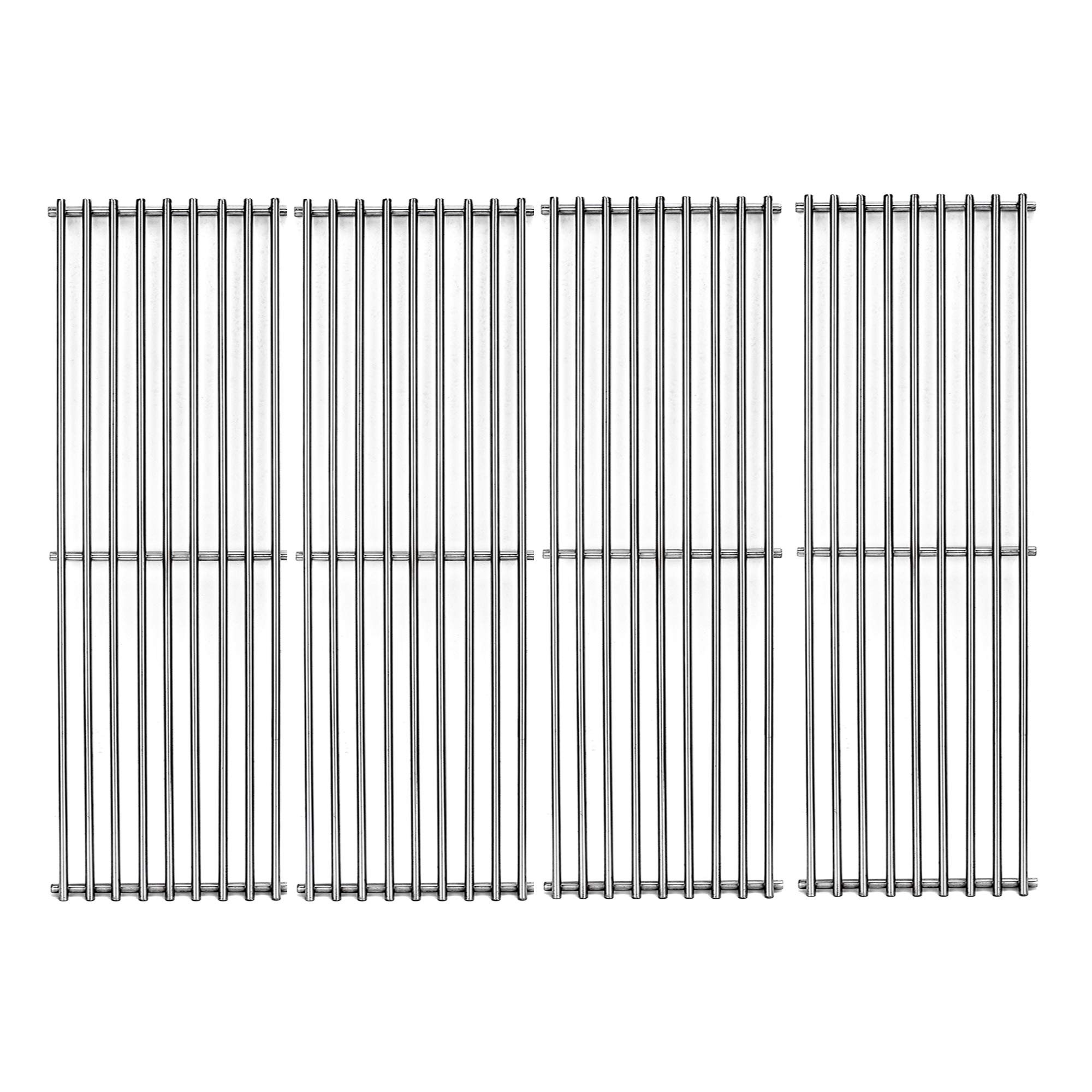

S6505A (4-Pack) 19 3/4” Stainless Steel Cooking Grid Grates Replacement for Chargriller 2121, 2123, 2222, 2828, 3001, 3030, 3725, 4000, 5050, 5252 Set of 4

The S6505A 4-Pack Stainless Steel Cooking Grid Grates stand out in one obvious way: you get four grates in a single order. For Chargriller owners managing a larger barrel-style or offset cooker, that’s relevant , these grills use multiple grates across a wide cooking surface, and replacing them individually adds up. Buying as a set is the practical approach.

Chargriller’s lineup spans a range of configurations, from the compact 2121 to the larger 5050 and 5252 models, and the compatibility list here is extensive. Confirm your model number before ordering, as Chargriller occasionally updates dimensions across production runs of the same model designation. The stainless construction handles the temperature swings that barrel-style charcoal grills produce , long, lower-temperature cooks followed by high-heat searing , without the warping you’d see from thinner carbon steel.

The brand is generic, which means no warranty support and limited documentation. For a replacement grate on a mid-tier charcoal grill, that’s an acceptable trade-off for most buyers. These solve the problem at a reasonable cost.

Check current price on Amazon.

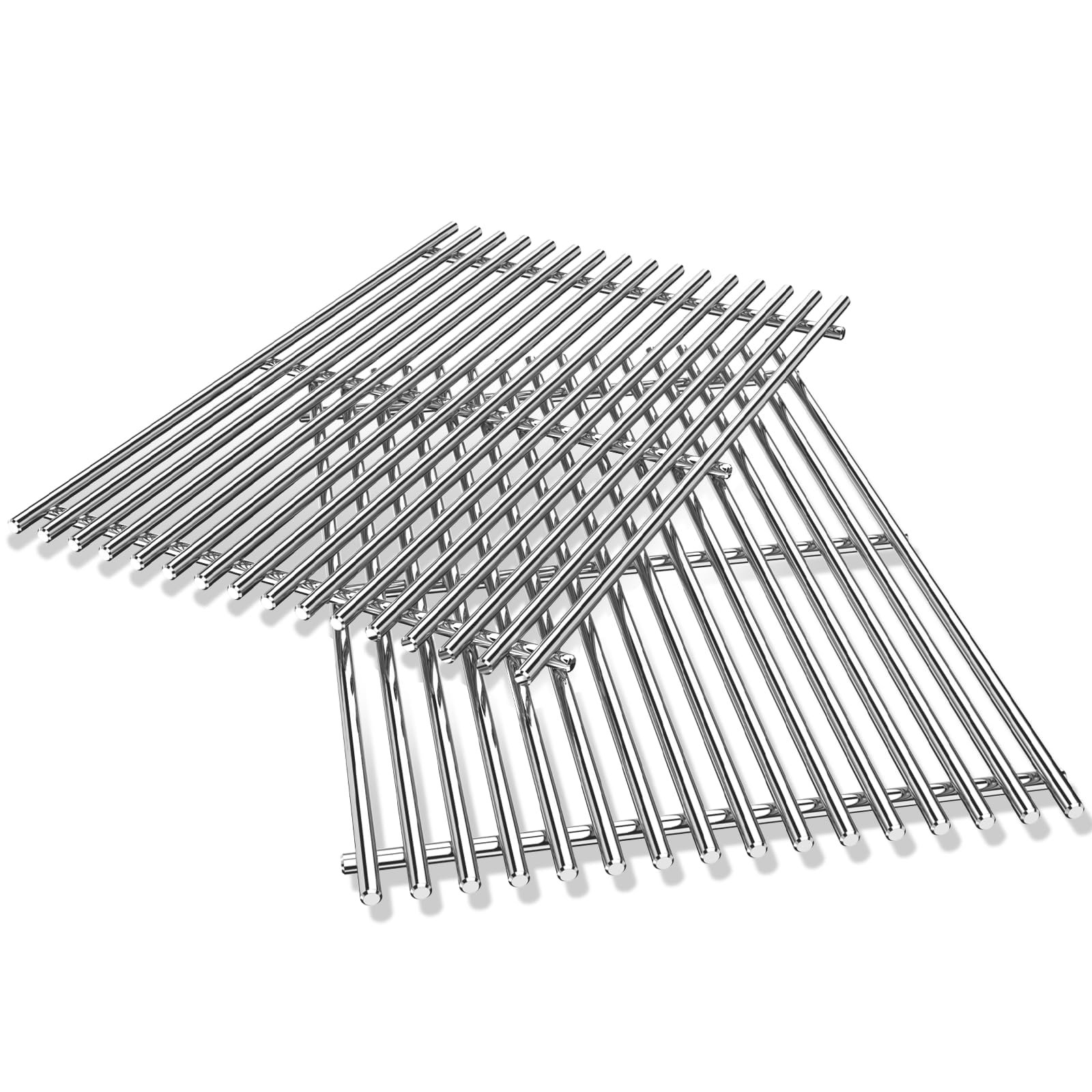

304 Stainless Steel Grill Grates for Weber Spirit 300 GS4 Spirit II 300 Series Spirit 700, Genesis Silver B & C, Genesis Gold B & C Platinum B & C, Genesis 1000-3500 for Weber Spirit Grill Parts 7639

The 304 Stainless Steel Grill Grates for Weber Spirit 300 cover similar Weber model territory to the QuliMetal option, which means the relevant question for most buyers is: which fits your specific configuration better? Both are 304 stainless. Both cover Spirit 300 and older Genesis series. The difference comes down to production tolerances and the specific Weber part number your frame was built around.

This option references Weber part 7639 in its listing, which corresponds to specific Spirit and Genesis configurations. If your grill’s parts documentation lists 7639 as the grate part number, the cross-reference is useful confirmation. Aftermarket grates built to a specific OEM part number tend to fit more consistently than those built to generic published dimensions.

The absence of a recognized brand means you’re making a decision on specifications alone , steel grade, dimensions, and compatibility reference. For a consumable replacement part on a grill you intend to run for another several years, 304 stainless grade and correct fit are the criteria that matter. Both are confirmed here.

Check current price on Amazon.

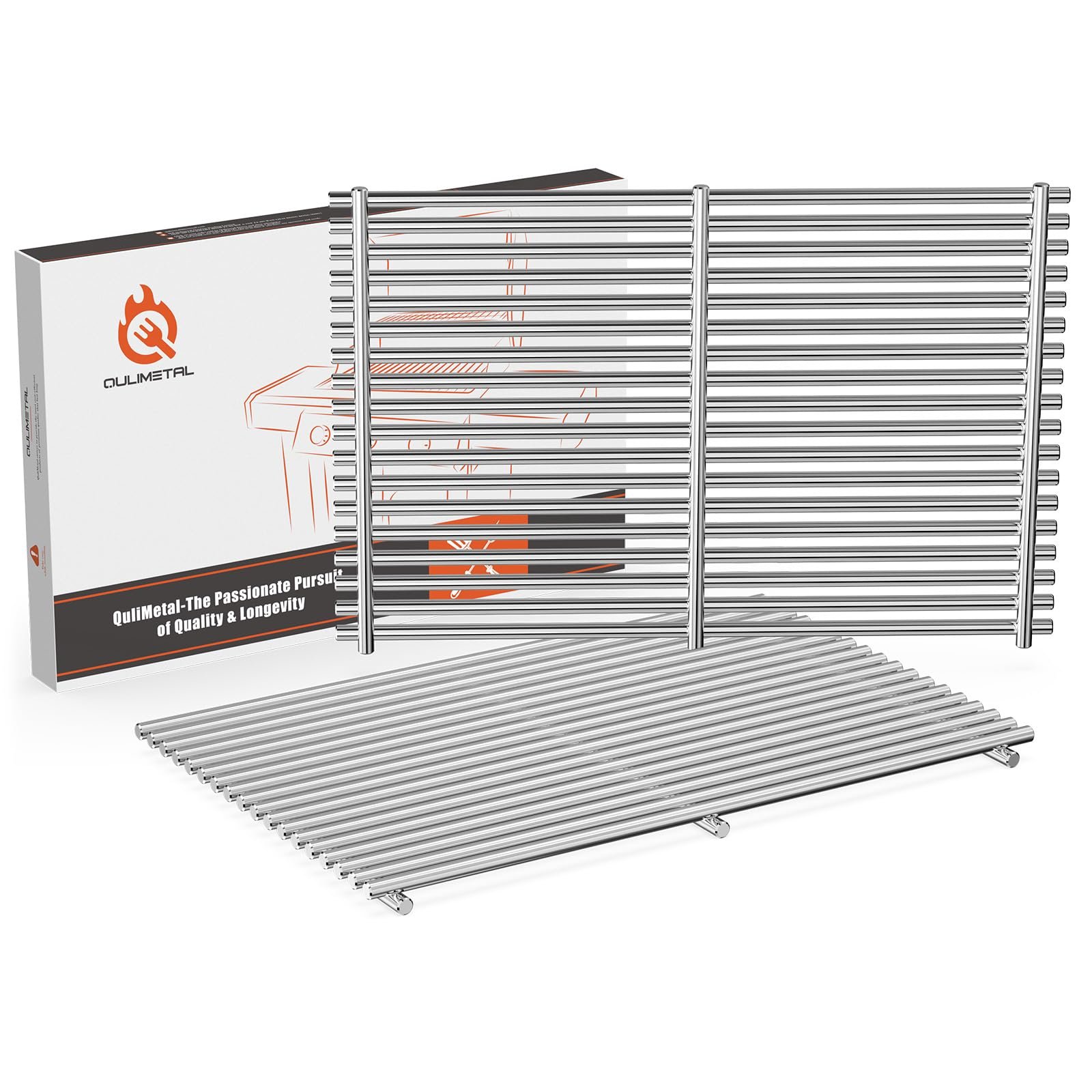

9MM 18.75” Grill Grates for Weber Genesis II, Grill Parts for Weber Genesis 2 300 & GS4 Genesis II LX 300 Series Grills, 304 Stainless Steel Replacement Grates for Weber Genesis II E 310 E&S 315 320

The 9MM 18.75” Grill Grates for Weber Genesis II are the option to prioritize if you own a Genesis II and want heavier construction than standard replacement grates provide. The 9mm bar diameter is the most useful spec in this listing , that’s a thick bar, and it holds heat better than the thinner stock that ships with some Genesis II configurations. If sear quality is what you’re after, bar mass matters.

Weber Genesis II owners have a narrower aftermarket selection than Spirit owners, so the compatibility coverage here , E 310, E&S 315, 320, and LX 300 series , is worth noting. The 18.75-inch dimension fits the 300 series cooking chamber without the ambiguity that comes from listings that specify only model names without measurements.

304 stainless at 9mm is a configuration that will outlast the original grates on most Genesis II grills. Installation is straightforward , these drop into the existing frame supports. Manual alignment during the first use is normal for aftermarket grates; heat cycling seats them properly after one or two sessions.

Check current price on Amazon.

Buying Guide

Match to Your Grill Before You Match to Your Budget

Every other decision in this category is secondary to compatibility. A premium 304 stainless grate that doesn’t fit your cooking chamber is a paperweight. Pull the model number from your grill before you start comparing products , it’s usually on a label inside the lid or stamped on the back panel. Copy it down exactly, including the suffix. Charbroil and Chargriller both produce multiple grill variants under similar model numbers, and a suffix difference can mean a different grate dimension.

Once you have the model number, cross-reference it against the product’s compatibility list, not just the title. Product titles truncate long model lists; the full description usually covers more configurations than the title suggests.

Steel Grade Is the Durability Variable

Grade 304 stainless outperforms grade 430 in any environment with moisture, salt air, or temperature cycling. The nickel content in 304 resists the chloride-induced pitting that degrades 430 grates over multiple seasons. If a listing doesn’t specify the grade, ask or assume 430 and price accordingly. For a grill you plan to use for five or more years, the grade difference is worth prioritizing. All five options reviewed here use stainless steel; the 304 designations on the QuliMetal, the Weber Spirit 300 option, and the Genesis II 9mm grates are explicitly confirmed. Investing in quality replacement grates is consistent with the broader approach to maintaining your equipment that you’ll find throughout the grill tools and grates category.

Bar Thickness and Heat Retention

Thicker bars take longer to come up to temperature and hold that heat longer once they’re there. For high-heat searing , steaks, burgers, chicken thighs , that stored heat is what transfers to the protein surface fast enough to produce a proper sear rather than a steam-stew effect. The 9mm option for Genesis II is the thickest here and the right choice for buyers who prioritize sear quality over everything else. Thinner bars heat faster and are lighter to handle, which matters if you rotate or remove grates frequently during a cook.

Aftermarket Fit Expectations

Aftermarket grates are manufactured to published OEM dimensions, not machined from the same tooling as the original parts. That means fit is usually very close but occasionally requires minor adjustment , a slight lift to clear a burner tube, or a quarter-turn to seat flush against the frame rails. This is normal and not a defect. The adjustment takes less than a minute and is a one-time process. If a listing references a specific Weber part number (like 7639), that cross-reference improves the likelihood of an accurate fit because the manufacturer is building to a documented spec rather than field-measured dimensions.

Porcelain vs. Bare Stainless Cooking Surface

If you’re replacing porcelain-coated grates with bare stainless, adjust your cooking approach. Porcelain’s smooth, non-reactive surface releases food more easily, especially fish and chicken skin. Bare stainless requires more aggressive preheating, consistent oiling before proteins go on, and patience , don’t try to move protein before it releases naturally. The stainless surface will develop a patina over time that improves release. Seasoning bare stainless grates with a thin coat of high-smoke-point oil before the first use accelerates that process.

Frequently Asked Questions

Are aftermarket stainless steel grates as good as Weber OEM grates?

For most buyers, yes , and in some cases better. Weber’s OEM grates on older Spirit and Genesis models used 430 stainless, while several aftermarket options reviewed here use 304, which resists corrosion more effectively. The practical trade-off is fit tolerance: OEM parts are machined to factory spec, while aftermarket grates are built to published dimensions that occasionally require minor seating adjustments. That adjustment is a one-time process and doesn’t affect long-term performance.

What’s the difference between grade 304 and grade 430 stainless steel for grill grates?

Grade 304 contains nickel in addition to chromium, giving it stronger resistance to moisture and chloride corrosion , the kind that builds up from outdoor exposure, marinades, and humid climates. Grade 430 is less expensive to produce but more susceptible to pitting and surface rust over multiple seasons. A simple test: 304 is non-magnetic or weakly magnetic; 430 will hold a magnet firmly. For any grill used regularly outdoors, 304 is the more durable long-term choice.

Will the QuliMetal grates fit my Weber Spirit E-310 without modification?

The QuliMetal SUS304 Grill Grates are designed to fit the Spirit E-310 and cover a wide range of Spirit and Genesis configurations. Most buyers report a direct drop-in fit. Occasional minor seating adjustments have been noted on older Genesis frames, which is typical for aftermarket parts. Confirm your grill’s model number against the full compatibility list in the product description rather than relying on the title alone , Spirit model suffixes matter for dimensional accuracy.

How do I prevent food from sticking to bare stainless steel grates?

Stainless steel grates require more preparation than porcelain-coated surfaces. Preheat the grill fully before any protein goes on , at least 10, 15 minutes on high. Apply a thin layer of high-smoke-point oil (avocado, grapeseed, or refined canola) to the grate surface using a folded paper towel held with tongs. Don’t attempt to move the protein until it releases on its own; forcing it tears the surface and causes sticking.

Should I replace all grates at once or just the damaged ones?

Replace all at once if the remaining grates are showing significant rust, pitting, or warping , mixing old and new creates uneven cooking surfaces and inconsistent heat distribution. If only one grate is damaged and the others are structurally sound with minimal surface corrosion, replacing the single damaged grate is reasonable for the short term. The S6505A four-pack is structured for Chargriller owners who need to replace a full set across a larger cooking surface rather than managing individual grate replacement.

---
